| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
|
| Chipset | INTEL Z890 |
|
| Form Factor | ATX (243.84mmx304.8mm) |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 4x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB |
|
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |

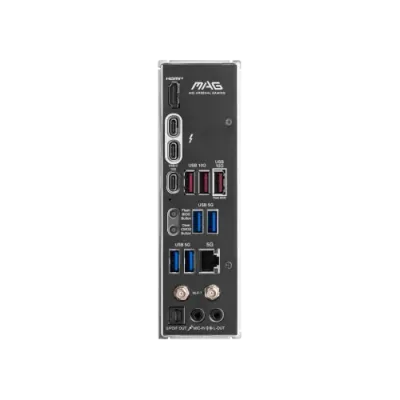

| Display Ports | 2x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 1.4 |
|
| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
|
| Wireless Communication module | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| LAN Port (s) | Intel Killer E5000 5Gbps LAN | |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Audio | 1x Front Audio (JAUD) Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| TPM (Trusted Platform Module) | 1x TPM pin header(Support TPM 2.0) |
|
| Warranty Information | ||
| Warranty | 3-Year Warranty (Must Claim With Box & All Accessories) | |

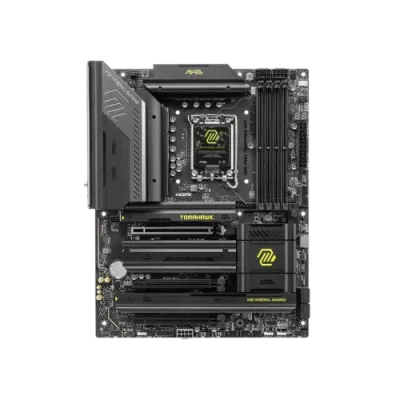

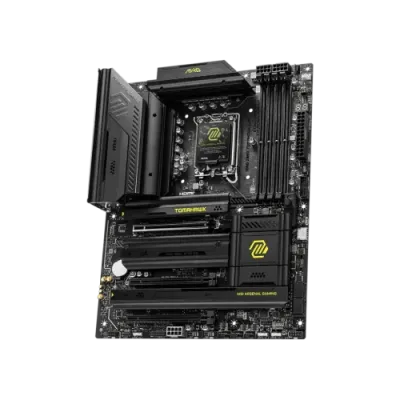

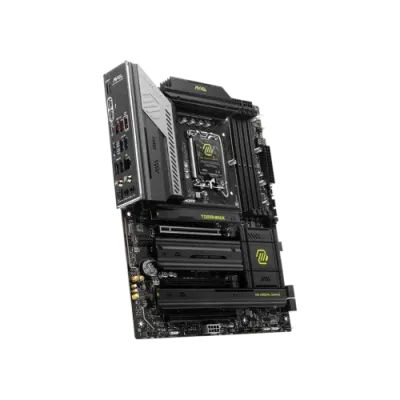

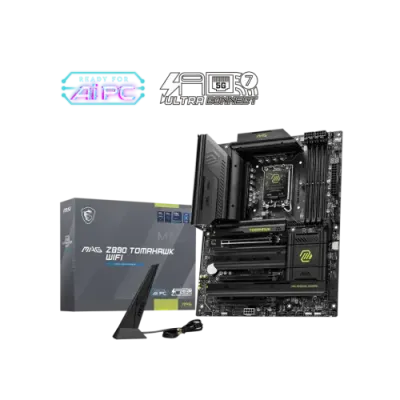

The MSI MAG Z890 TOMAHAWK WIFI is a cutting-edge Intel Z890 motherboard, built for gamers, content creators, and enthusiasts ready to harness the power of Intel's latest LGA 1851 platform. Supporting DDR5 memory up to 7800+ MHz and PCIe 5.0, this board ensures exceptional speed, bandwidth, and future readiness.
With built-in Wi-Fi 7, 2.5G LAN, and Bluetooth 5.4, it delivers seamless connectivity. Storage is maximized with 4 M.2 slots, including one PCIe Gen5 NVMe slot. The board’s premium thermal solutions — including M.2 Shield Frozr and extended heatsinks — provide exceptional cooling under heavy workloads.
Whether you're gaming or pushing high-end productivity, the MSI Z890 TOMAHAWK delivers top-tier reliability and performance. Available now at Tech Shosta Bangladesh.
